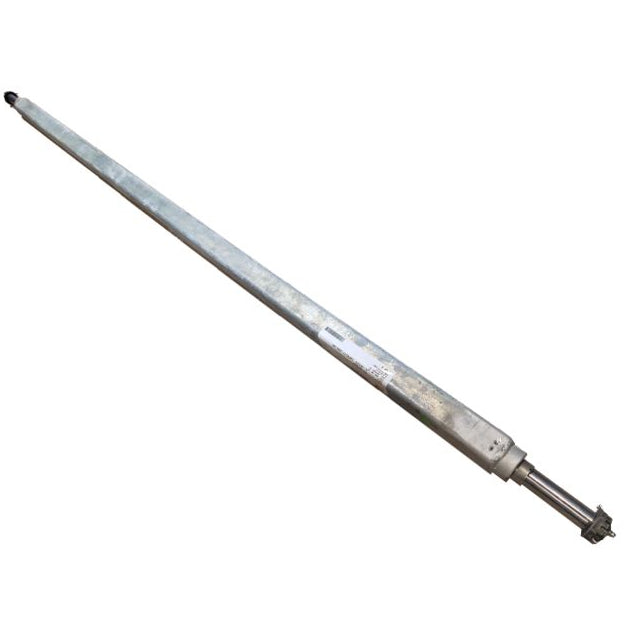

TIEDOWN 75" Square Galvanized Trailer Axle (2,000 lb.) #G-49545

Product Overview:

The TIEDOWN 75" Square Galvanized Trailer Axle is the perfect universal replacement axle designed for trailers.

Key Features:

• Material: Galvanized axle stock weldment
• Durability: Equipped with a stainless steel wear sleeve
• Maintenance: Includes super lube grease zerks for easy maintenance
• Wheel Hubs and Bearings: Sold separately

Specifications:

• Axle Type: 2" x 2" Square - Galvanized
• Load Rating: 2,000 lbs
• Overall Length: 80"
• End of Spindle to End of Spindle Spring Center: Recommended 60" - 65"
• Hub Face: 75"
• Hub Type: 4 or 5 bolt (not included)
• Spindle Size: 1-1/16" x 1-1/16"
• Camber: 1° per side
• Welded at Spindles

Important Note:
Axles are shipped without spring seat holes. It is the customer's responsibility to drill spring holes according to the trailer's specifications. Please note that axles are non-returnable once holes have been drilled.
