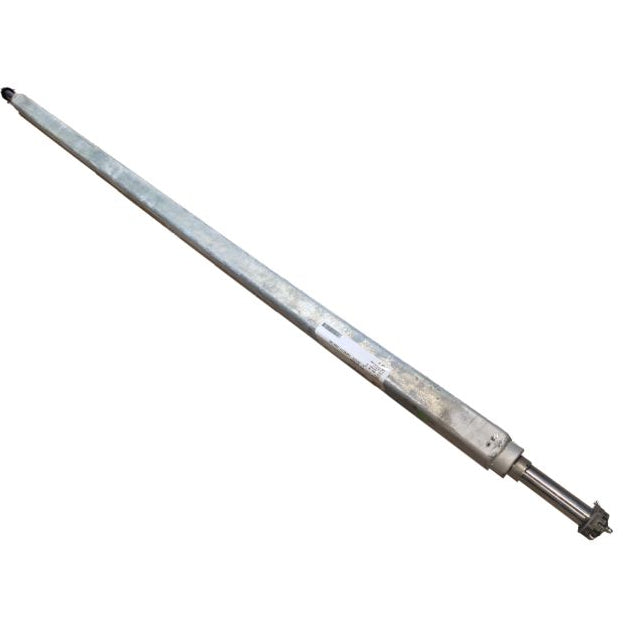

TIEDOWN 77 Square Galvanized Trailer Axle (2,000 lb.) #G-201275

Product Description

Introducing the TIEDOWN 77 Square Galvanized Trailer Axle, designed as a universal replacement axle for trailers. This durable axle features a galvanized axle stock weldment, ensuring long-lasting performance.

Key Features:

• Material: Galvanized axle stock with a stainless steel wear sleeve
• Lubrication: Equipped with super lube grease zerks for easy maintenance
• Wheel Hubs and Bearings: Sold separately

Specifications:

• Axle Type: 2" x 2" Square
• Load Rating: 2,000 lbs.
• Overall Length: 82" (End of Spindle to End of Spindle)
• Recommended Spring Center: 62" - 67"
• Hub Face: 77"
• Hub Type: 4 or 5 bolt (not included)
• Spindle Size: 1-1/16" x 1-1/16"
• Camber: 1° per side
• Welded: At spindles

Important Note:

Axles are shipped without spring seat holes. It is the customer's responsibility to drill spring holes according to the trailer's specifications. Please note that once holes have been drilled, axles are non-returnable.
