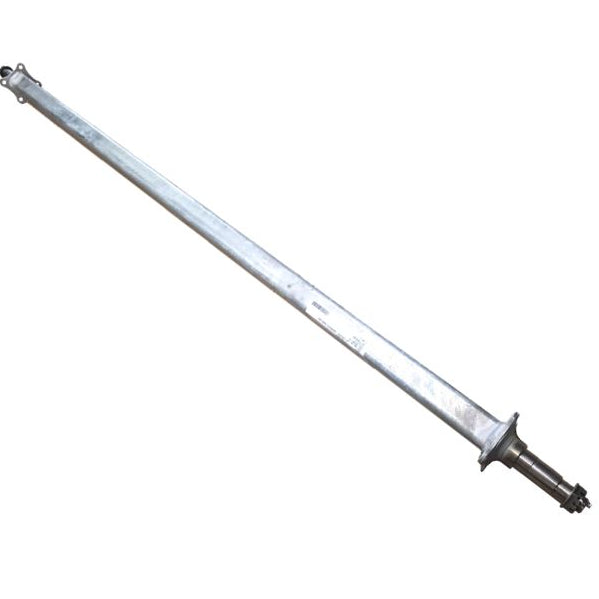

TIEDOWN 77 Square Galvanized Trailer Axle (3,500 lb.) #G-201291

Product Description

Introducing the TIEDOWN 77 Square Galvanized Trailer Axle, a universal replacement axle designed for trailers.

Features:

• Material: Galvanized axle stock weldment
• Wear Resistance: Equipped with a stainless steel wear sleeve
• Lubrication: Super lube grease zerks for easy maintenance
• Wheel Hubs & Bearings: Sold separately

Specifications:

• Axle Type: 2" x 2" x 1/4" Square - Galvanized
• Load Rating: 3,500 lbs
• Overall Length: 82"
• End of Spindle to End of Spindle Spring Center: Recommended 61.5" - 65.5"
• Hub Face: 77"
• Brake Flange (Outside): 71"
• Hub Type: 5 bolt (Not Included)
• Spindle Size: 1-3/8" x 1-1/16"
• Camber: 1° Per Side
• Welded at Spindles

Important Note:

• Axles are shipped without spring seat holes. It is the customer's responsibility to drill spring holes according to the trailer's specifications.
• Please be aware that axles are non-returnable once holes have been drilled.

Upgrade your trailer's performance and reliability with the TIEDOWN 77 Square Galvanized Trailer Axle!
