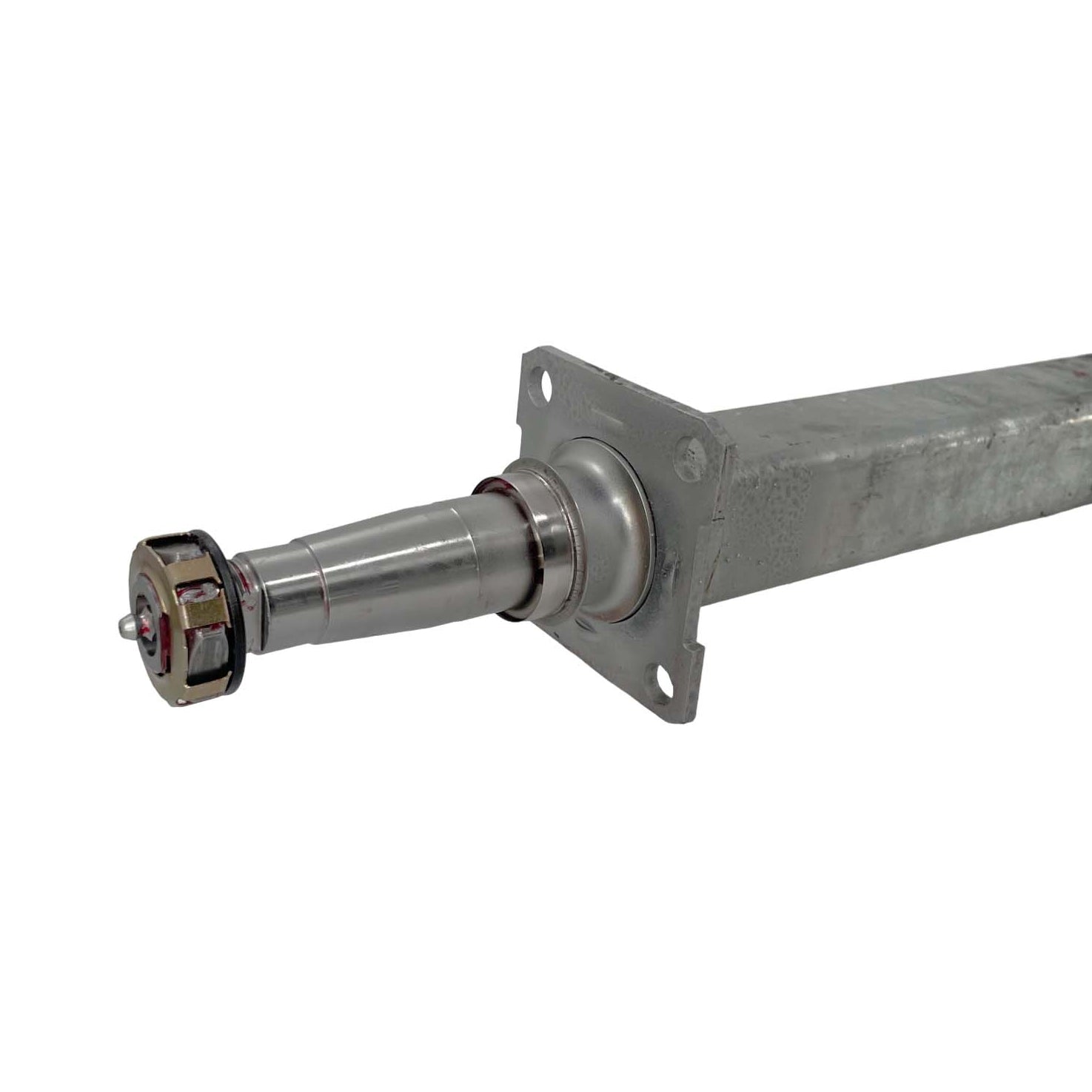

TIEDOWN 81.25" Square Galvanized Trailer Axle (3,500 lb.) #G-49558

Product Description

The TIEDOWN 81.25" Square Galvanized Trailer Axle is a universal replacement axle designed for trailers. This robust axle features a galvanized stock weldment, ensuring durability and resistance against corrosion.

Key Features:

• Material: Galvanized axle stock
• Wear Protection: Equipped with a stainless steel wear sleeve
• Lubrication: Includes super lube grease zerks
• Axle Type: 2" x 2" x 1/4" Square
• Load Rating: 3,500 lbs

Specifications:

• Overall Length: 86" (End of Spindle to End of Spindle)
• Spring Center: Recommended between 65.75" - 69.75"
• Hub Face: 81.25"
• Brake Flange (Outside): 75-1/4"
• Hub Type: 5 bolt (not included)
• Spindle Size: 1-3/8" x 1-1/16"
• Camber: 1° per side
• Welded at Spindles: Yes

Important Note:

Axles are shipped without spring seat holes. It is the customer's responsibility to drill the spring holes according to the trailer's specifications. Please note that axles are non-returnable once holes have been drilled. Wheel hubs and bearings are sold separately.
