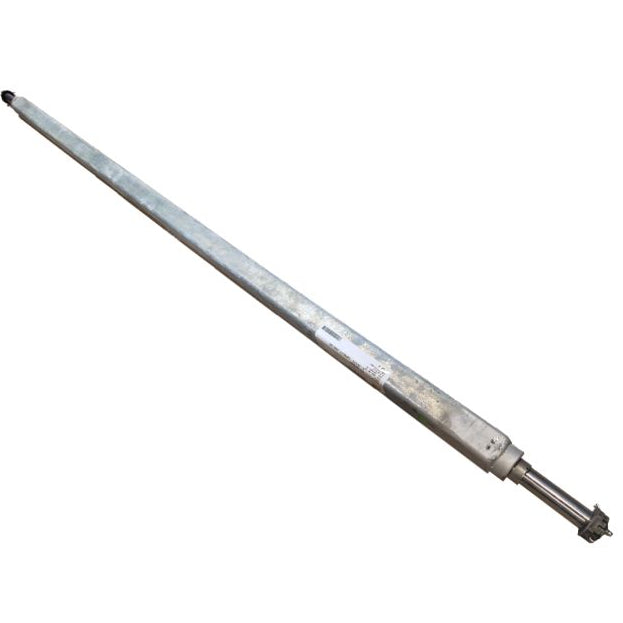

TIEDOWN 87 Square Galvanized Trailer Axle (2,000 lb.) #G-49547

Introducing the TIEDOWN 87 Square Galvanized Trailer Axle, a universal replacement axle designed for durability and performance.

Features:

• Material: Constructed from galvanized axle stock weldment for enhanced corrosion resistance.
• Wear Protection: Equipped with a stainless steel wear sleeve.
• Maintenance: Includes super lube grease zerks for easy maintenance.

Specifications:

• Axle Type: 2" x 2" Square - Galvanized
• Load Rating: 2,000 lbs
• Overall Length: 92" (from end of spindle to end of spindle)
• Recommended Spring Center: 72" - 77"
• Hub Face: 87"
• Hub Type: 4 or 5 bolt (not included)
• Spindle Size: 1-1/16" x 1-1/16"
• Camber: 1° per side
• Welded: Welded at spindles

Important Note:

• Axles are shipped without spring seat holes. It is the customer's responsibility to drill spring holes to meet the trailer's specifications. Please note that once holes have been drilled, axles are non-returnable.

Upgrade your trailer’s performance with the TIEDOWN 87 Square Galvanized Trailer Axle and ensure a smooth and reliable ride.
