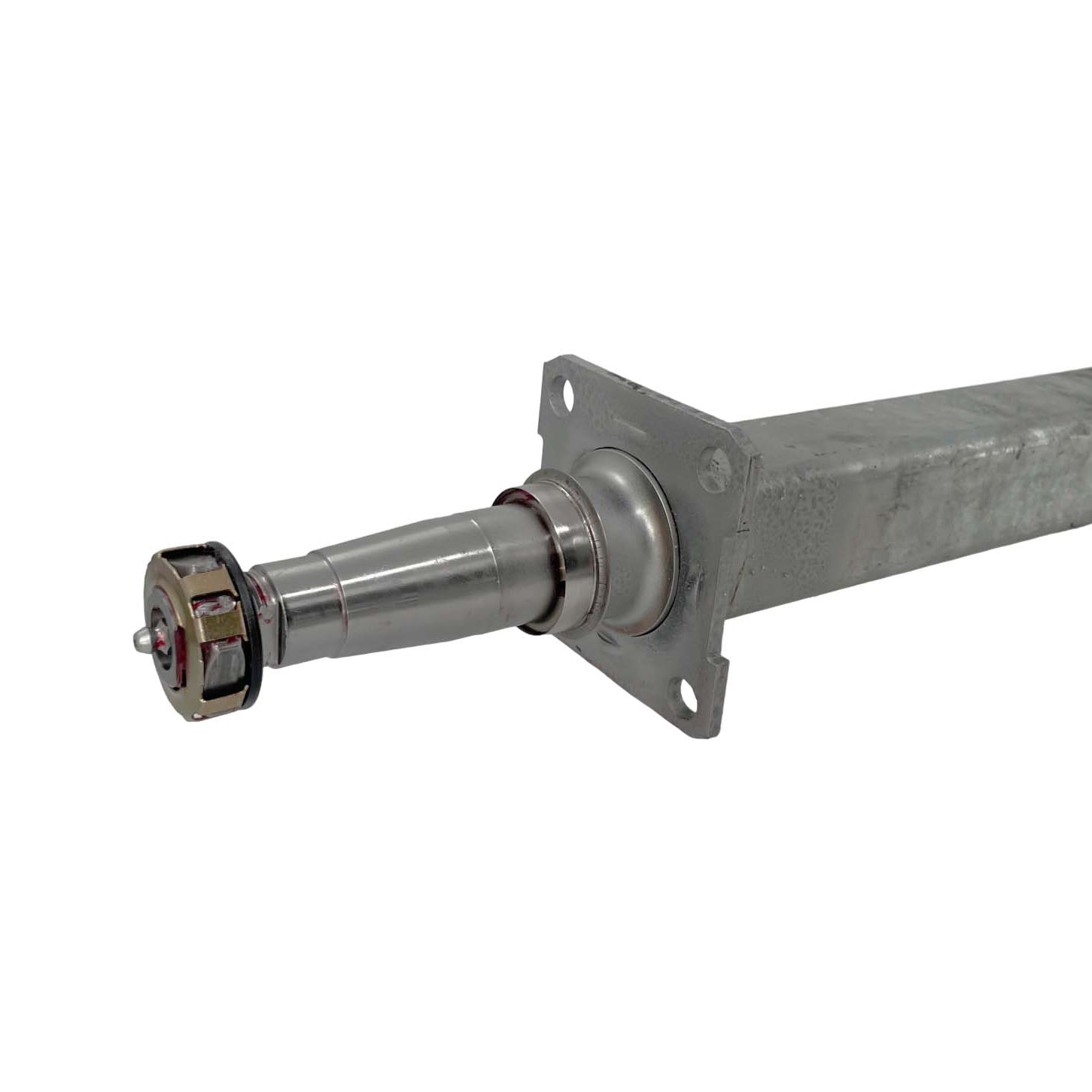

TIEDOWN 91.25" Square Galvanized Trailer Axle (3,500 lb.) #G-49561

Product Description:

Introducing a universal replacement axle designed specifically for trailers. This galvanized axle stock is a robust weldment that ensures durability and longevity.

Key Features:

• Material: Galvanized steel with a stainless steel wear sleeve
• Greasing System: Equipped with super lube grease zerks
• Wheel Hubs & Bearings: Sold separately

Specifications:

• Axle Type: 2" x 2" x 1/4" Square - Galvanized
• Load Rating: 3,500 lbs.
• Overall Length: 96" (from end of spindle to end of spindle)
• Spring Center: Recommended 75.75" - 79.75"
• Hub Face Width: 91.25"
• Brake Flange (Outside): 85-1/4"
• Hub Type: 5 bolt (not included)
• Spindle Size: 1-3/8" x 1-1/16"
• Camber: 1° per side
• Welded at Spindles

Important Note:

Axles are shipped without spring seat holes. It is the customer's responsibility to drill the spring holes according to their specific trailer specifications. Please be aware that axles are non-returnable once holes have been drilled.
